Cargo adaptors use a handhold mechanism to engage with myosin V for organelle transport

Class V myosin motors mediate the directed transport of intracellular cargo along filamentous actin (Trybus, 2008). These ubiquitously expressed molecular motors function as homodimers and are essential for the movement of diverse cargo types. In mammals, myosin Va transports and positions melanosomes in melanocytes (Rogers et al., 1999; Wu et al., 1997), delivers insulin-containing secretory granules in pancreatic β cells (Varadi et al., 2005), and mobilizes smooth endoplasmic reticulum in Purkinje cells (Wagner et al., 2011). It also regulates the localization of RNA-protein particles in hippocampal neurons (Nalavadi et al., 2012). Myosin Vb is involved in apical membrane trafficking in epithelial cells (Engevik et al., 2019; Lapierre et al., 2001; Roland et al., 2011), while myosin Vc associates with Weibel–Palade bodies to regulate their exocytosis in vascular endothelial cells (Holthenrich et al., 2022). Thus, myosin V motors play a fundamental role in a wide range of biological processes, contributing to cell type–specific functions and cellular organization. However, the molecular mechanisms governing precise motor–cargo interactions are only partially understood.

Myosin V activity is tightly controlled to ensure efficient cargo transport. A major regulatory mechanism involves the release of autoinhibition. In its inactive state, myosin V adopts a folded conformation in which intramolecular interactions between the N-terminal motor domain (head) and C-terminal cargo-binding domain (tail) prevent motor activity. These inhibitory contacts are further stabilized by interfaces involving the lever arms and coiled-coil domains in the central domain. Cargo adaptors relieve autoinhibition by disrupting these extensive intramolecular interactions, thereby triggering myosin V motility (Liu et al., 2006; Niu et al., 2022; Thirumurugan et al., 2006). This highlights the essential role of cargo adaptors in regulating motor function. Mutational analyses in yeast suggest that this autoinhibitory mechanism is evolutionarily conserved (Donovan and Bretscher, 2015).

In addition to activating the motor, cargo adaptors regulate myosin V by ensuring the precise spatial and temporal localization of cargo. They achieve this by directly linking myosin V to its specific cargo while serving as regulatory hubs that coordinate cargo attachment and release (Hammer and Sellers, 2011; Weisman, 2006). An example of how cargo adaptor regulation controls transport dynamics can be seen in vacuole inheritance in budding yeast (Hill et al., 1996; Weisman, 2006). The movement of the vacuole relies on interactions between yeast myosin V, Myo2, the vacuole-specific adaptor, Vac17, and the vacuole scaffold protein, Vac8. Early in the cell cycle, a portion of the mother cell vacuole is transferred to the emerging bud. This process is initiated by the availability of Vac17, which is transcribed during the G1 and G1/S phases (Spellman et al., 1998), and by phosphorylation of Vac17 (Peng and Weisman, 2008). Vac17 tethers Myo2 to Vac8 (Ishikawa et al., 2003; Kim et al., 2023; Tang et al., 2003; Wang et al., 1998). Once sufficient levels of the Myo2–Vac17–Vac8 complex are formed, the vacuole moves along actin cables toward the bud tip. During this directed movement, additional regulators are recruited to Vac17. Upon the vacuole’s arrival at the bud tip, these regulators terminate transport by ubiquitinating and further phosphorylating Vac17 (Wong et al., 2020; Yau et al., 2014, 2017). These modifications lead to the extraction of Vac17, which is proteolyzed by the proteasome. The regulated degradation of Vac17 causes Myo2 to release the vacuole at the bud cortex, freeing Myo2 to transport other cargoes to the mother-bud neck. Thus, cargo adaptors integrate signals from cellular pathways to regulate Myo2–cargo interactions.

Budding yeast have at least 11 additional cargo adaptors for Myo2 (Beach et al., 2000; Beningo et al., 2000; Dunkler et al., 2021; Eves et al., 2012; Fagarasanu et al., 2006; Fortsch et al., 2011; Itoh et al., 2002, 2004; Jin et al., 2011; Lipatova et al., 2008; Otzen et al., 2012; Santiago-Tirado and Bretscher, 2011; Tang et al., 2003; Yin et al., 2000; Zhao et al., 2025, Preprint). During cell division, Myo2 interacts with these adaptors to transport distinct cargoes to sites of polarized growth. Genetic and structural analyses of the Myo2 tail (Catlett and Weisman, 1998; Ishikawa et al., 2003; Liu et al., 2022; Pashkova et al., 2005, 2006; Schott et al., 1999; Tang et al., 2019) have identified critical surface residues that mediate these interactions. Notably, these adaptor-binding sites often converge on two major regions of the Myo2 tail (Eves et al., 2012), suggesting that selective and efficient cargo movement is a highly coordinated process. Understanding how cargo adaptors interact with Myo2 may reveal broader principles governing actin-based transport systems in higher eukaryotes.

Cargo adaptors for actin-based motors are often structurally flexible and form transient associations between motors and their cargoes. Since full-length adaptors fail to crystallize with myosin V/Myo2, the available complex structures include only short peptide sequences (Pylypenko et al., 2013, 2016; Tang et al., 2019; Wei et al., 2013). This limitation hinders a comprehensive understanding of the molecular basis of myosin V/Myo2–cargo interactions. To overcome this challenge, we combined structural biology with cell-based and computational approaches to map the interaction sites between Vac17 and Myo2.

Here, our study reveals that Vac17 interacts with Myo2 through two distinct sites rather than a single site. We identify a Vac17 region that forms a second interface. This N-terminal region of Vac17, now termed Vac17(H), is predicted to adopt a three-helix bundle (h1–3). The presence of both Vac17(H) and its canonical Myo2-binding domain, Vac17(MBD), is necessary for proper Myo2-mediated vacuole movement. Moreover, the structure shows that Vac17(H) and Vac17(MBD) bind to opposite and distal sites on the Myo2 tail. This suggests that Vac17 wraps around the Myo2 tail and binds in a “handhold” mechanism. Additionally, we show that the peroxisome adaptor Inp2 also uses two sites on Myo2. These findings predict that multiple cargo adaptors employ handhold mechanisms to engage Myo2. The binding of adaptors at two sites likely stabilizes the motor–cargo complex and provides additional sites of regulation for the attachment and detachment of cargoes.

To probe how Vac17 functions with Myo2, we utilized the myo2-N1304S mutant, which is defective in its interaction with Vac17 (Catlett et al., 2000; Ishikawa et al., 2003; Pashkova et al., 2006), and screened for compensatory mutations in Vac17 that could restore vacuole inheritance. We performed random PCR mutagenesis across the entire Vac17 open reading frame to ensure that all regions were included. 11 suppressor mutations were identified; however, only three mutations (T110P, R126S, and I140V) reside within the canonical Myo2-binding domain, Vac17(MBD) (Fig. 1 A and Table S1). Notably, many of the suppressor mutations were located upstream of the Vac17(MBD), suggesting that this region, referred to as Vac17(H), also plays a role in its interactions with Myo2.

To investigate the role of Vac17(H), we first examined whether this N-terminal sequence forms a coiled-coil, as previously suggested (Tang et al., 2003). Notably, 2D and 3D structural analyses revealed that Vac17(1–109) adopts a three-helix bundle. Thus we have renamed this region Vac17(H) (Fig. 1 A). Next, we deleted residues 18–108 and assessed the impact of the vac17ΔH mutant on vacuole inheritance. When vacuole inheritance is impaired, new buds form vacuoles through de novo synthesis (Jin and Weisman, 2015). To differentiate between inherited and newly synthesized vacuoles, we used pulse-chase labeling of the vacuoles with FM 4–64 (Vida and Emr, 1995, Fig. 1 B). In wild-type cells, vacuole inheritance typically occurs during bud emergence or in small buds. However, in the vac17ΔH mutant, ∼67% of cells with small buds lacked vacuoles, whereas, in cells with large buds, similar to wild type, ∼97% of buds contained vacuoles (Fig. 1 C). These results indicate that the vac17ΔH mutant exhibits a delay in vacuole inheritance.

The localization of Vac17 relative to the vacuole and sites of polarized growth—at the bud tip or the mother-bud neck where Myo2 is located—is another way to measure Vac17 function. In wild-type cells, at the onset of vacuole inheritance, Vac17 accumulates as puncta on a portion of the vacuole near sites of polarized growth. Once the vacuole reaches the bud tip, Vac17 is targeted for degradation, leading to the loss of its signal in cells with large buds (Peng and Weisman, 2008; Wong et al., 2020; Yau et al., 2014, 2017). In contrast, in the vac17ΔH mutant, Vac17 failed to form puncta and instead was observed throughout the vacuole membrane in both mother and bud cells (Fig. 1 D). This altered localization resembles that seen in Myo2 point mutants that are specifically defective in Vac17 interaction (Eves et al., 2012; Peng and Weisman, 2008). That vacuoles are eventually inherited in large buds suggests that the vac17ΔH mutant retains partial association with Myo2. Importantly, the vac17ΔH mutant did not alter Myo2 localization (Fig. S1 A). Additionally, the Vac8 signal around the vacuole remained unaffected in the vac17ΔH mutant (Fig. S1 B). The colocalization of the vac17ΔH mutant with Vac8 indicates that Vac17(H) is not required for the interaction between Vac17 and Vac8 (Fig. S1 C). However, in the absence of Vac8, the vac17ΔH mutant becomes cytosolic. While Vac17(MBD) remains essential for vacuole inheritance (Fig. S1 D, Ishikawa et al., 2003), Vac17(H), through its interactions with Myo2, facilitates the movement of vacuoles into small buds.

Based on the Vac17 mutant data, we hypothesized that Vac17(H) directly binds Myo2. To test this, we co-expressed and purified recombinant peptides of Vac17(H) or Vac17(MBD) with the Myo2 tail. Consistent with previous biochemical studies, Vac17(MBD) bound to the Myo2 tail (Fig. 1 E and Fig. S1 E, Eves et al., 2012; Liu et al., 2022; Tang et al., 2019). Notably, we observed that the Vac17(H) peptide exhibited affinity for the Myo2 tail. To confirm complex formation, we performed a reciprocal pull-down of Vac17 followed by Myo2. Subsequent gel filtration analysis (darker blue) revealed a peak corresponding to the expected Vac17(H)–Myo2 complex (lighter blue), verifying their interaction. These findings suggest that the partial inheritance defect observed in the vac17ΔH mutant results from a reduced ability of Vac17 to bind Myo2.

The above biochemical studies suggested that Vac17(H) directly binds to Myo2 and likely enhances the ability of Myo2 to transport the vacuole into the bud. To assess how Vac17(H) impacts vacuole movement, we performed live-cell imaging in a strain with the vacuole marker, mCherry-Vph1, expressed from its endogenous locus and transformed with plasmids that express either wild-type or the vac17ΔH mutant (Fig. 2, A–D). Cells were arrested in G1 phase using alpha factor and released into fresh media. During this period, cells were transferred into a microfluidics plate, where they were continuously perfused with fresh media. We noted that the Vac17 levels were elevated near the leading edge of the vacuole in synchronized cells. Thus, to avoid the potential effects from excess Vac17 accumulation on the rate of vacuole movement, cells were allowed to complete one doubling cycle prior to time-lapse imaging during the second cycle.

To quantify vacuole movement across the mother-bud neck, we performed kymograph analysis of the mCherry-Vph1 vacuole signal from cells with a bud that was initially devoid of the vacuole (Fig. 2, A and C). The red lines on the kymographs represent the growing bud tip, and the yellow dashed lines indicate the mother-bud neck. We also created a montage of time-lapse images from representative cells, including the moment when the vacuole first crosses the mother-bud neck. These image sequences are marked by the blue dashed box in the kymographs (Fig. 2, B and D). Consistent with earlier observations, in wild-type cells, when the vacuole crosses the mother-bud neck, the ratio of the bud diameter relative to the mother cell is 0.18. However, in vac17ΔH cells, vacuole inheritance is delayed (Fig. S2, A–C), resulting in a bud diameter:mother diameter ratio of 0.3 (Fig. 2 E).

To determine whether the Myo2 motility is impaired, we calculated the instantaneous velocity of the vacuole in each cell, irrespective of the starting and ending position (Fig. 2 F), and found that there was no significant difference (67 nm/s versus 77 nm/s for wild type and vac17ΔH, respectively). In a second analysis, we analyzed the rates of all anterograde movements per cell until the first time the signal reached the bud cortex (Fig. 2 G). Again, these anterograde velocities in wild-type (19.8 nm/s) versus the vac17ΔH mutant (22.4 nm/s) cells were not significantly different. Given the 10-s interval between image acquisitions, some velocities may be faster than reported. We note that these measured rates are rough approximations. Thus, Myo2 velocity appears unaffected, however, the timing of vacuole transport is delayed in the vac17ΔH mutant.

Although vacuole inheritance eventually occurs in vac17ΔH cells, we observed that, unlike wild-type cells, the Vac17 signal persistently localizes around the entire vacuole. Moreover, western blot analysis showed that Vac17 expression was elevated fourfold compared with wild type (Fig. S2 D). Since an intact Myo2–Vac17–Vac8 complex is required for Vac17 degradation (Tang et al., 2003; Yau et al., 2014, 2017), the increased steady-state levels of Vac17 in vac17ΔH cells further suggest that this mutant is defective in its interaction with Myo2. We postulate that the excess levels of Vac17 in the vac17ΔH mutant cells eventually recruits enough Myo2 motors to initiate vacuole transport.

Earlier studies were unable to crystallize Myo2 bound to high-affinity peptides derived from the Vac17(MBD) sequence (Liu et al., 2022), leading us to consider cryo-EM. Given the importance of Vac17(H) alongside Vac17(MBD), we set out to characterize how the Vac17(H+MBD) region associates with Myo2 at the molecular level. We purified a recombinant complex comprising co-expressed Myo2 tail and the Vac17(H+MBD) peptide. Gel filtration analysis of the complex showed that Vac17(H+MBD) and Myo2 tail co-eluted as a single peak (Fig. S3 A). Vitrification of the sample and subsequent analysis using 2D class averages revealed high-quality, monodisperse particles, indicating that the complex was amenable for structure determination by cryo-EM (Fig. S3, B–E).

After collecting and analyzing a dataset for the Vac17(H+MBD)-Myo2 tail, we determined a cryo-EM structure at an overall resolution of ∼6 Å (Fig. 3 A). Docking and comparison of this reconstruction with the previously solved crystal structure of the apo Myo2 tail (PDB accession no. 2F6H, Pashkova et al., 2006) revealed a similar overall architecture (Fig. S3 F). Notably, the reconstruction revealed an additional, unoccupied density. Given its proximity to Myo2 residues D1297 and N1304, which are critical for vacuole inheritance, we assigned this density to Vac17 (Fig. S4 A, Eves et al., 2012).

To characterize the Vac17–Myo2 interaction at the amino acid level, we used the COSMIC² server (Cianfrocco et al., 2017) to perform AlphaFold2-Multimer structure predictions (Evans et al., 2022, Preprint; Jumper et al., 2021; Mirdita et al., 2022) of the Vac17(H+MBD) and Myo2 tail complex (Fig. 3 B). The predicted models closely recapitulate the atomic structure of the apo Myo2 tail (Fig. S3 F). Importantly, the structure of the Vac17(MBD) sequence (residues 127–147) align well with the putative cryo-EM density for Vac17 (Fig. 3 C, Eves et al., 2012). Within this region, Vac17 residues 127–137 form a disordered loop extending along the Myo2 helix, while residues 138–147 adopt a short helix directed away from Myo2 with minimal apparent contact. Even in the absence of high-resolution cryo-EM data, integrating predictive modeling with experimental density can enable the identification of distinct structural features, offering valuable insights into the flexibility and organization within the complex.

To determine the orientation of Vac17 on the Myo2 tail, we focused on Vac17(R142), a polar residue near the interface that is predicted to interact with Myo2(E1222) (Fig. 3, D–F). We hypothesized that these residues form electrostatic interactions and thus performed charge reversal mutagenesis to assess whether restoring charge complementarity could rescue function. The vac17(R142E) mutant impaired vacuole inheritance in small buds (Fig. 3 D), consistent with predictions based on an isothermal titration calorimetry study, which showed a complete loss of affinity between vac17(R142E) and the Myo2 tail (Liu et al., 2022). Similarly, the myo2(E1222K) mutant displayed a defect in inheritance (Fig. 3, E and F). Importantly, co-expression of Vac17(R142E) and myo2(E1222K) partially rescued vacuole inheritance, supporting the proposed orientation of Vac17 binding to Myo2. However, since the vac17(R142E) mutant retains partial function in vivo and large buds still inherit a vacuole, suggests that additional interactions are involved.

To further assess how Vac17(MBD) binds to Myo2, we introduced additional mutations within the region of Vac17 identified from the cryo-EM map and found that hydrophobic interactions play a critical role (Fig. 3 D). Most notably, a conservative substitution, vac17(L137A), abolished vacuole inheritance, consistent with the isothermal titration calorimetry study showing that vac17(L137Q) disrupts Myo2 binding (Liu et al., 2022). Vac17(L137) interacts with Myo2(L1229 and L1301), which form a hydrophobic groove (Fig. S4, B and C). This groove is also critical for recognition by Mmr1(L410) for mitochondrial transport (Tang et al., 2019). In contrast, Vac17 residues (R142, K138, and R135), which could mediate multiple polar interactions with Myo2 surrounding the hydrophobic patch, resulted in only partial inheritance defects (Fig. 3, C and D). Interestingly, Vac17(I140), a suppressor residue, lies within a helix that does not directly contact Myo2 but may induce local structural adjustments that restore contact with the myo2(N1304S) mutant. Collectively, in vivo analyses of these mutants combined with the cryo-EM structure reveal that the Vac17(MBD) and Myo2 tail interaction is primarily driven by hydrophobic contacts, with additional stability provided by polar interactions.

To investigate the general principles governing interactions of myosin V and cargo adaptors that bind in the Vac17(MBD) region, we compared our Vac17–Myo2 structure with the Mmr1–Myo2 complex (Tang et al., 2019, Fig. 4, A and B). Previous genetic studies demonstrated that Vac17 and Mmr1 bind to overlapping and distinct sites on Myo2 (Eves et al., 2012). Docking the Mmr1–Myo2 structure revealed that Mmr1 partially occupies the Vac17 density, confirming their shared binding region (Fig. S4. D). Although Vac17 and Mmr1 adopt similar structural motifs, they bind in opposite orientations. A key hydrophobic residue, Vac17(L137), aligns with Mmr1(L410) to recognize an overlapping site on Myo2 (Fig. 4 F). In addition, the positively charged Vac17(R142) interacts with Myo2(E1222), a residue specific to the Vac17-binding region, whereas Mmr1(R409) forms salt bridges with Myo2(E1293) (Tang et al., 2019). Notably, Myo2(E1293), which is situated directly across from Myo2(E1222) in the neighboring helix, was previously thought to be exclusive to Vac17 binding.

Our analysis further reveals that the Vac17- and Mmr1-binding sites on Myo2 overlap more extensively than previously recognized. In vitro, an Mmr1(398–430) peptide with an R409E mutation abolishes binding to Myo2(E1293) (Tang et al., 2019). However, in vivo, the Mmr1(R409E) mutation only partially disrupts mitochondrial inheritance (Nayef et al., 2024), and the myo2(E1293K) mutation has no effect on mitochondrial inheritance (Eves et al., 2012). These results suggest that while Mmr1(R409) directly contacts Myo2(E1293), additional charged residues nearby can also interact with Mmr1. Importantly, these adaptors engage Myo2 through multiple interaction sites. Notably, the regions specific to Mmr1 and Vac17 recognition harbor opposite charge potentials around their overlapping hydrophobic patch (Fig. 4 A), which likely contributes to the precise positioning of each adaptor.

Building on these new insights, we examined published structures of the mammalian myosin Va tail bound to its cargo adaptors, melanophilin (Mlph) and Spire2 (Spir2) (Pylypenko et al., 2013, 2016; Wei et al., 2013) (Fig. 4, C and D). Strikingly, despite significant sequence divergence, the Mlph, Spir2, Vac17, and Mmr1 adaptors converge on a key myosin V/Myo2 cargo recognition site and form interactions that are conserved (Fig. 4, E). A key residue, Mlph(F196) (Pylypenko et al., 2013, 2016), forms hydrophobic contacts with myosin Va(I1535), which is analogous to the interactions of Vac17(L137) and Mmr1(L409) with Myo2(L1229) (Fig. 4, F and G). Interestingly, Spir2(L414) occupies a similar position to Vac17(L137) and Mmr1(L410) and may interact with myosin V(I1535), although this interaction has not yet been tested. Additionally, residues in myosin Va(R1528 and E1595)—analogous to Myo2(E1222 and E1293)—form hydrogen bonds with Mlph(S190 and F191) and Spir2(A411), consistent with the electrostatic interactions observed between Myo2(E1222 and E1293) and Vac17(R142) and Mmr1(R409).

Note that Vac17 uniquely binds in an inverted orientation relative to the longest helix of the motor tail. Thus, 3D structural information was required to discover these conserved binding motifs. Together, these findings reveal that a central hydrophobic core is supported by adjacent polar interactions, underscoring conserved principles in myosin V adaptor recognition.

Due to the absence of an obvious density for Vac17(H), the above reconstruction focused on Vac17(MBD) and Myo2. Notably, 2D class averages showed a “fuzzy” density located on the opposite end from Vac17(MBD) (Fig. 5 A). To resolve this density, we used a combination of signal subtraction and focused classification on the region showing the fuzzy density from the class averages (Fig. S5). Alignment-free 3D classification of these subtracted particles revealed several classes with additional density. By selecting the class with the most continuous density and reverting to un-subtracted particles, we obtained a 3D reconstruction revealing the presence of additional density on the Myo2 tail (Fig. S5). To rule out masking artifacts, we performed another round of 2D classification, ab initio reconstruction, and 3D refinement, which confirmed the second density on the Myo2 tail.

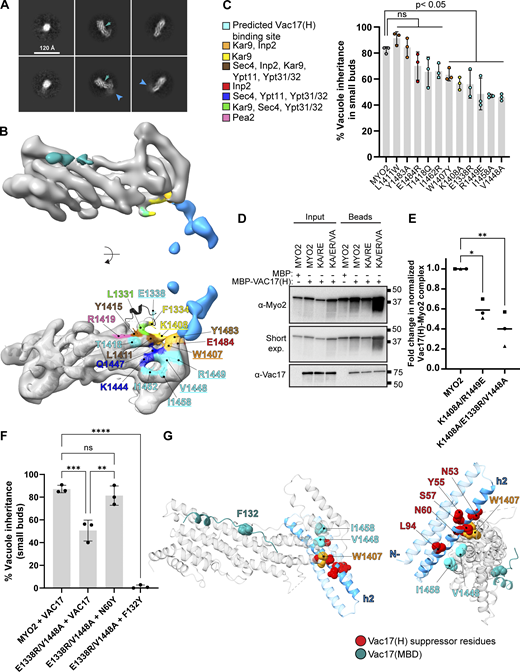

Our cryo-EM analysis yielded a ∼7-Å reconstruction of the Vac17(H+MBD)–Myo2 complex and revealed two distinct Vac17 densities surrounding Myo2 (Fig. 5 B). Given the low number of particles showing simultaneous occupancy at both sites, we infer that Vac17(H) is either more flexible or binds more weakly than Vac17(MBD). To further characterize this new interface, we docked predicted models of the Vac17(H+MBD)–Myo2 complex and found that Vac17(H) interacts with a region on Myo2 that was previously implicated in the transport of other cargoes, including secretory vesicles and peroxisomes.

We first tested Myo2 residues that likely contribute to this interface. Myo2(W1407) and Myo2(K1408) were previously shown to mediate the movement of astral microtubules and peroxisomes via Kar9 and Inp2, respectively (Eves et al., 2012; Fagarasanu et al., 2009). Notably, vacuole inheritance occurred in 63% and 57% of small buds in the myo2(W1407Y) and myo2(K1408A) mutant cells, respectively (Fig. 5, B and C). These findings suggest that these Myo2 residues contribute to vacuole transport, in addition to their established roles in moving at least two other cargoes.

We also tested Myo2 residues that were not previously linked to cargo binding. myo2(V1448A), myo2(R1449E), and myo2(I1458A) mutants each resulted in a >50% defect in vacuole inheritance. Additionally, the myo2(E1338R) mutation, which is located in an unresolved loop containing a regulatory phosphosite in myosin Va (Fig. S3 F and Fig. 5 B, Karcher et al., 2001; Yoshizaki et al., 2007), impaired vacuole inheritance, with only 56% of vacuoles observed in the small buds.

To determine whether the newly identified interface on Myo2 directly interacts with Vac17(H), we performed in vitro–binding assays (Fig. 5 D). MBP-Vac17(H) was co-expressed with recombinant Strep II–tagged Myo2 tail carrying the indicated point mutations. Myo2 was pulled down and the resulting complexes were assessed by immunoblot analysis (Fig. 5 E). Compared with binding to wild-type Myo2, there was a 41% reduction in Vac17(H) bound to the myo2(K1408A and R1449E) double mutant, and 60% less of Vac17(H) bound to the myo2(E1338R, K1408A, and V1448A) triple mutant. This progressive loss of binding indicates that these Myo2 surface residues play an important role in binding to Vac17(H).

To gain insights into how Vac17(H) engages this region, we analyzed multiple AlphaFold models, which revealed that Vac17(H) forms antiparallel three-helix bundles in two distinct orientations relative to Myo2. We then mutated candidate Vac17 residues from all three helices—vac17(E19K), vac17(R30E and R33E), vac17(N60Y), vac17(S61E and V64E), and vac17(E97R). Among these, only vac17(N60Y) rescued the vacuole inheritance defect of the myo2(E1338R and V1448A) mutant (Fig. 5 F). This suggests that h2, Vac17(42–79), directly interfaces with Myo2. Notably, all four original suppressor mutations in h2 substituted polar for hydrophobic residues. This suggests that these changes strengthen binding to the hydrophobic patch on Myo2—comprising Myo2(W1407), Myo2(V1448), and Myo2(I1458)—that is important for vacuole inheritance (Fig. 5, B and G). Similarly, the suppressor L94M in h3 is predicted to engage this same Myo2 surface.

The observation that suppressor mutations in Vac17(H) rescued a point mutation on the opposite side of Myo2, myo2(N1304S), suggests that impaired interaction at one binding site could be worsened by weakening the interaction at the other site. To test this, we examined whether a partial mutation in Vac17(MBD), vac17(F132Y), would be further impaired by mutations in the newly identified Myo2 sites that interact with Vac17(H): myo2(E133R and V1448A). Notably, co-expression of these mutants resulted in a complete loss of vacuole inheritance (Fig. 5, F and G). These findings further support a model in which Vac17 engages Myo2 at two distinct sites during vacuole inheritance.

That Vac17 binds two different sites on the Myo2 tail raises the question of whether this feature is shared with other cargo adaptors. Indeed, the peroxisome adaptor Inp2 engages two separate sites on Myo2. In vitro studies revealed that the interaction of the Inp2(241–705) peptide with the myo2(W1407F) mutant tail was impaired, and in yeast the myo2(W1407F) mutant also resulted in a peroxisome inheritance defect (Eves et al., 2012; Fagarasanu et al., 2006, 2009). In contrast, a recent structural study revealed that the Inp2(531–543) peptide interacts at a distant site on Myo2, Myo2(F1264), and Myo2(F1275) (Tang et al., 2019, Fig. 6 A). These findings suggest that Myo2(F1264) and Myo2(F1275) may define a third cargo recognition site on Myo2, although this has not been tested in vivo.

To determine whether Inp2 spans Myo2 to engage two sites, we first tested myo2(W1407Y) and showed that there is a defect in peroxisome inheritance, with only 12% of small buds containing peroxisomes (Fig. 6 B). Moreover, in the myo2(F1264E) and myo2(F1275E) mutants, 28% and 53% of small buds contained peroxisomes. Note that in wild-type cells 82% of small buds contain peroxisomes (Fig. 6 B). These findings suggest that, similar to Vac17, Inp2 interacts with Myo2 at two distinct sites.

Cargo adaptors were previously thought to form a single interface with Myo2. However, our findings reveal that Vac17, as a single adaptor, forms extensive contacts and engages with at least two separate sites on Myo2. Importantly, Inp2 also binds to at least two sites on Myo2. This suggests a strategy where a single adaptor can form multiple distinct interfaces with Myo2. We propose that this handhold mechanism may govern the interactions of multiple cargo adaptors with myosin V.

Through a combination of genetics, live-cell imaging, biochemistry, and structural biology, we discovered that Vac17 wraps around Myo2, engaging with two distinct interfaces on its tail. This handhold mechanism strengthens the motor–cargo association and ensures efficient vacuole transport (Fig. 7, A and B). While Vac17(MBD) provides a high-affinity, essential interaction, it is insufficient for proper vacuole transport. This highlights the importance of multivalent interactions in at least some motor–cargo adaptor complexes. Importantly, Vac17(H) is required for optimal engagement with Myo2. Deletion of Vac17(H) results in a delay in vacuole movement (Fig. 7, C and D). We propose that the increased steady-state levels of the vac17ΔH mutant may eventually recruit sufficient Myo2 motors to move vacuoles into large buds (Fig. 7, E and F).

Similarly, the peroxisome adaptor Inp2 also requires two Myo2-binding sites for efficient peroxisome transport. This provides another example of a single adaptor binding to multiple sites on Myo2. Previous structural studies suggested that each cargo adaptor engaged only one myosin V/Myo2 site (Pylypenko et al., 2013; Wei et al., 2013; Tang et al., 2019). However, these studies used adaptor peptides that were too short to encompass other potential binding sites. Our cryo-EM analysis enabled us to utilize a longer adaptor peptide, which revealed that Vac17 spans two Myo2 sites.

Despite successful crystallization of other adaptor peptides, Vac17 had remained structurally elusive. Cryo-EM provided molecular insights into Vac17–Myo2 interactions. While cryo-EM remains challenging for resolving high-resolution structures of small, asymmetric proteins, our reconstruction offers new insights by capturing the broader structural context of the interaction between Vac17 and Myo2.

Structural comparisons reveal that Vac17(MBD) uniquely binds Myo2 in an orientation opposite to other adaptors. Myo2-bound Vac17 and Mmr1, as well as myosin Va-bound Spir2 and Mlph utilize an equivalent hydrophobic groove, each stabilized by polar interactions on one side. This conserved binding pattern was not evident from sequence analysis alone.

Our analysis also reexamines phosphosites implicated in adaptor release (Fig. S4 E). Vac17(S131) and Mmr1(S414) align with each other and reside on the longest Myo2 tail helix. We hypothesize that these sites play a role in the dissociation of Vac17 or Mmr1 from Myo2, though likely in an indirect manner. Mmr1(pS414), which triggers ubiquitination and detachment from Myo2 during mitochondrial transport (Obara et al., 2022), faces away from Myo2 (Tang et al., 2019; Nayef et al., 2024), and thus, would not directly impact Mmr1 binding.

A second reconstruction, derived from 18% of particles, suggests that Vac17(H) is structurally flexible and may be stabilized by additional factors. This Vac17 density is further supported by AlphaFold models, which align with the hypothesis that Vac17(H) is positioned opposite and distal to the Vac17(MBD) site on Myo2. Vac17(H) likely interacts with Myo2 via hydrophobic contacts, specifically with Myo2(W1407), Myo2(V1448), and Myo2(I1458). Notably, many suppressor mutations identified in Vac17(H) involved changes to hydrophobic residues, suggesting that these mutations act by enhancing interaction with a hydrophobic surface on Myo2, including W1407, V1448, and I1458. In addition, Myo2(V1448) corresponds to the disease-associated myosin Vb(L1746R) residue (Aldrian et al., 2021), which may alter hydrophobic contacts with Rab11 (Pylypenko et al., 2013).

Another mutant, myo2(E1338R), which impairs vacuole transport, is analogous to myosin Vb(R1641C), a variant associated with cancer (Letellier et al., 2017). Both mutations are located in an unstructured region of the Myo2/myosin V tail, where a regulatory phosphosite in myosin Va(S1650) has been identified (Karcher et al., 2001; Yoshizaki et al., 2007). While Myo2(E1338) is distant from the hydrophobic patch, it likely contributes to Vac17(H) binding and plays a role in the transport of multiple cargoes. Together, these findings underscore the functional relevance of the newly characterized Myo2 residues.

Adaptor-binding sites often overlap with key recognition interfaces on Myo2, suggesting that cargo recognition may be competitive. The observation that many adaptors either bind two sites—as shown here for the vacuole and peroxisome—or require two adaptors for a single organelle increases the potential for competition between adaptors. Specifically, Vac17(MBD) overlaps with the Mmr1-binding site, while Vac17(H) interacts near Ypt11. Since Mmr1 and Ypt11 cooperate to move mitochondria (Chernyakov et al., 2013; Lewandowska et al., 2013), and live-cell imaging shows that vacuole inheritance generally precedes mitochondrial inheritance (Eves et al., 2012; Li et al., 2021), these overlapping adaptor interfaces likely facilitate temporal coordination of the transport of distinct organelles.

Our structural data suggest that a single Vac17 adaptor is unlikely to bridge the homodimeric tails of Myo2. If Myo2 adopts an autoinhibited conformation, similar to myosin Va (Niu et al., 2022), the distance between Vac17-binding sites would be too great for one Vac17 molecule to span both tails. Additionally, structural studies indicate that the C terminus of Vac17 wraps around a single Vac8 (Kim et al., 2023). This supports a model in which a single Vac17 molecule tethers one Myo2 tail to Vac8.

In summary, our findings provide insights into the structural basis of motor–cargo interactions. Separate from the classical model in which multiple adaptors form independent contacts, our data support a handhold strategy in which a single adaptor engages multiple interactions. This novel feature of Vac17 interaction with Myo2 offers a new perspective on how myosin V–cargo interactions are achieved and thus regulated.

Vac17 peptides, 1–109, 110–157, and 1–157, were PCR amplified from the Vac17 open reading frame, which was previously optimized for E. coli codon usage. Primer pairs included SalI and PstI restriction sites, and the corresponding PCR product was digested and ligated into an empty MBP-10xhis-TEV backbone. Strep II-Myo2(1150–1567) was generated using the Q5 SDM kit (NEB) to insert the epitope tag at the N terminus of the Myo2 open reading frame. Primers are listed in Table S2.

Point mutations were introduced using the single-mutagenic primer method. Internal deletions or insertions were generated using the Q5 site-directed mutagenesis kit (NEB). Primer pairs were designed using NEBaseChanger.

Strains used in this study are listed in Table S3. Plasmids used in this study are in Table S4. Yeast cultures were grown at 24°C at 0.57 × g (200 RPM). Yeast extract-peptone-dextrose was prepared with the following reagents: 1% yeast extract, 2% peptone, and 2% dextrose. Synthetic complete media lacking specific amino acid, and F-5OA plates for counter selection were made as described (Adams et al., 1998).

MBP-10xhis-TEV-Vac17 constructs and Strep II-Myo2 tail were co-expressed in BL21(DE3) cells. Primary cultures were grown overnight at 37°C in Luria broth media at 0.45 × g (180 RPM). The cultures were then backdiluted (100×) into Hyper Broth (Molecular Dimensions). Once the OD₆₀₀ reached ∼1.0, the shaker was chilled to 16°C, and cells were equilibrated for an additional ∼0.5 h before induction with 0.1 mM IPTG. After 18 h of expression, cells were harvested by centrifugation at 3,318 × g for 20 min, flash frozen, and stored at −80°C until protein purification. Pellets were weighed and resuspended in freshly prepared buffer containing 50 mM phosphate, pH 7.6, 150 mM NaCl, 2 mM β-mercaptoethanol (βME), 1 mM EDTA, pH 8.0, 1 mM PMSF, EDTA-free protease inhibitor cocktail, and benzonase (25 U/ml). The pellets were processed through a high-pressure homogenizer (15 k psi; 2 passes). Cell lysates were cleared by ultracentrifugation at ∼168k × g for 30 min at 4°C. The clarified lysates were incubated with pre-equilibrated amylose resin (NEB) for 3 h at 4°C on a nutator. The resin was transferred to a 10-ml column and washed extensively, before adding TEV protease to cleave the MBP fusion tags, followed by 1.5 h of incubation at 16°C. Eluents were concentrated using a 10-kDa MWCO Amicon spin filter (Millipore Sigma). Analytes reaching ∼500 µl or 3 mg/ml were injected into a size-exclusion column (Superdex 200 Increase 10/300 GL) at 0.35 ml/min. Only fresh proteins from individual fractions were used for same-day cryo-EM grid preparation.

Flash-frozen pellets of BL21(DE3) cells co-expressing Strep II-Myo2 tail and MBP-Vac17(H) were resuspended in 750 μl of resuspension buffer (50 mM Tris-HCl, pH 8.0, 150 mM NaCl, 5 mM βME, 1 mM EDTA, 1 mM PMSF, benzonase, and protease inhibitor cocktail [product #11836170001; Roche]). The lysate was transferred to a 2-ml tube, and 250 μl of 0.1-mm zirconia beads were added for cell lysis using a Mini-BeadBeater-8 (agitated for 30 s, followed by cooling on ice, repeated six times). After lysis, the samples were centrifuged at 10k × g for 5 min at 4°C, and the supernatant was transferred to a fresh 1.7-ml Eppendorf tube for a second round of centrifugation at 16k × g for 10 min. The resulting soluble fraction was incubated with 100 μl of pre-equilibriated Strep-TactinXT beads (IBA Lifesciences) for 1 h with gentle rotation at 4°C. The beads were then washed three times with 750 μl of wash buffer (50 mM Tris-HCl, pH 8.0, 400 mM NaCl, 0.1% Tween, and 5 mM βME), with each wash step involving rotation for 3–5 min.

Freshly eluted protein fractions were individually sampled for cryo-EM grid preparation (∼0.15–0.3 mg/ml per fraction for the 68-kDa sample). UltrAufoil R 1.2/1.3 on 300 mesh gold grids were glow discharged at 5 mA for 90- and 10-s hold in a 0.26-mBar vacuum chamber. Initial structure determination attempts revealed a preferred orientation of the complex. To overcome this problem, fluorinated octyl maltoside (150 μM final) was added to the peak fraction, incubated on ice, and spun down to remove any precipitates before sample vitrification. Grids were blotted with filter paper and plunge frozen into ethane cooled with liquid nitrogen using a Vitrobot Mark IV (Thermo Fisher Scientific) set to 4°C, 100% humidity, with 0-s wait, blot 4 s, and 20 force. Screening was performed overnight using a 200 keV Glacios or Arctica, using Leginon (Suloway et al., 2005). Data collection was done on a 300 keV Krios A equipped with a K3 Summit direct electron detector and a Gatan Imaging Filter with a 20 eV slit width in counting mode (1.085 Å/pixel) at a nominal magnification of 81,000x. Beam-image shift was used for data collection.

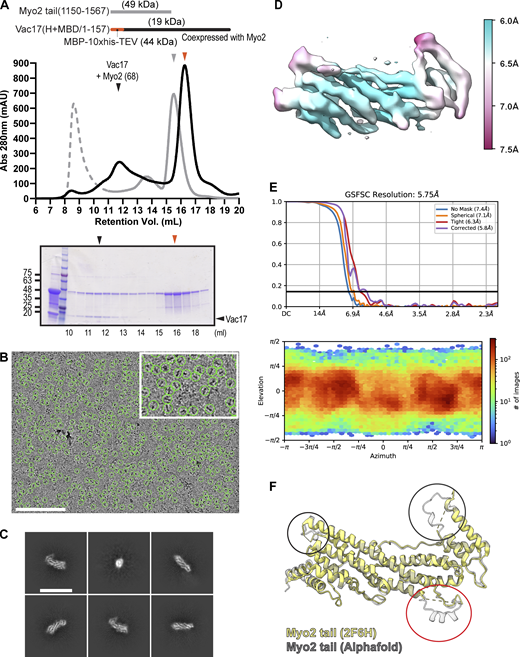

For more details, see Table S5 and Fig. S5. CryoSPARC (Punjani et al., 2017) v4 was used for preprocessing the dataset. After Patch Motion Correction and Patch CTF, exposures were manually curated. A random subset (10%) of micrographs was selected for blob picking to generate template particles for the curated dataset of 3,303 micrographs. After removing junk particles through three rounds of 2D classification, the remaining 618,699 particles were used for ab initio reconstruction and heterogeneous refinement, including junk volume. The highest resolution map, comprising 200,770 particles, underwent 2D classification and several rounds of heterogeneous refinements. The resulting 144,724 particles were selected for nonuniform refinement to obtain a final resolution of 5.75 Å. To obtain the fuzzy density structure, the original density for Myo2 and Vac17(MBD) from 200,770 particles was subtracted from particle images. Using ChimeraX’s molmap function, a composite of AlphaFold models for Vac17(1–09) was used as a template to generate a 15-Å Vac17 map, which was positioned near the fuzzy density in the un-subtracted reconstruction. The map was converted into a mask in CryoSPARC and further expanded by dilating and applying soft padding, for alignment-free focused 3D classification. For the highest resolution model, representing 35,957 particles, unsubtracted particle images were reintroduced for homogenous reconstruction. Following nonuniform refinement, the final map resolved to 7.56 Å. A test ab initio reconstruction with 35,957 particles from the refinement job recapitulated the final map.

Primary overnight cultures grown to 0.2–0.35 OD₆₀₀/ml were used for vacuole labeling. Cells were resuspended in 250 μl of fresh selective media into 1.7-ml Eppendorf tubes, and 3 μl of FM 4–64 dye (in DMSO; SynaptoRed C2; Biotium, Inc.) was added to a final concentration of 24 nM. The tubes were wrapped in aluminum foil and incubated for 40 min at 24°C on a shaker at 0.57 × g. After incubation, cells were washed twice with fresh media, resuspended in 1 ml, and backdiluted into 4 ml of fresh media (1:5). Cells were incubated for at least one doubling time (3 h) before imaging.

Primary overnight cultures grown to 0.2–0.3 OD₆₀₀/ml (50 ml) were synchronized in G1 phase by incubating with fresh aliquots of 4 μM of alpha factor (Zymo Research) for 3 h. Cells were washed three times with fresh media, resuspended several times to breakup clumps, and transferred into a microfluidics plate (200 μl total volume), which was continuously perfused with new media. Cells were monitored for one doubling cycle before imaging to avoid an alpha factor–induced accumulation of Vac17 on vacuole transport. 10–15 OD’s of cells were loaded into the CellASIC ONIX2 microfluidic plate (Catalog #Y04C-02-5PK; Millipore Sigma) for time-lapse imaging. Cells were viewed with a DeltaVision microscope using a 60× objective and 1.6× auxiliary magnification (0.06788 μm/pixel).

Yeast cells were imaged using a DeltaVision Restoration system (Applied Precision) on an inverted epifluorescence microscope (IX-71; Olympus) equipped with a 100×/1.40 NA oil immersion objective and a CCD camera (CoolSNAP HQ; Photometrics). For visualization of PTS1 and Myo2 puncta (Fig. 6), imaging was performed on a Leica DMi8 microscope using a 100×/1.44 NA oil immersion objective and processed with the Leica THUNDER Imager. Single-z sections were acquired for all imaging modalities. Images were processed and analyzed using FIJI (Schindelin et al., 2012).

Cells at 0.4–0.6 OD₆₀₀/ml (50 ml total) were harvested by centrifugation at 3,000 × g for 3 min and flash frozen. The pellet was resuspended in 1 ml prechilled lysis buffer (0.2 M NaCl and 7.5% βME) and incubated on ice for 10 min. Then, 100 μl of prechilled TCA was added and left for an additional 10 min. The lysate was centrifuged at 17,000 × g for 5 min at room temperature. The supernatant was discarded, and the pellet was air-dried for ∼15 min. The pellets were resuspended in 100 μl of 2X sample buffer (4% SDS, 0.1 M Tris-HCl, pH 6.8, 20% glycerol, 0.01% bromophenol blue, and 5% βME), and 1 M Tris base (pH 11) was added incrementally (20 μl) to neutralize the pH of the precipitates. Samples were boiled at 75°C for 10 min, spun down, and loaded onto SDS-PAGE gels, which were run at 150 V for 1.5 h.

For direct protein detection, SDS-PAGE gels were stained with Imperial Protein Stain (Thermo Fisher Scientific) and destained with ddH₂O. For immunoblotting, gels were transferred onto 0.45-μm nitrocellulose membranes (Cytiva or Bio-Rad) via wet transfer at 100 V for 3 h. Membranes were blocked with 5% milk in 1x TBST at room temperature for 45 min. Primary antibodies used included rabbit α-Vac17 (1:3,000; this study), goat α-Myo2 (1:3,000; Ishikawa et al., 2003), mouse α-GFP (1:1,000; product #1181446001; Roche), and mouse α-Pgk1 (1:10,000; catalog #459250; Invitrogen), and they were incubated for 3 h at room temperature or 16 h in the cold room. Membranes were washed three times with 1x TBST at 10-min intervals, followed by incubation with donkey α-goat IgG (H+L) ML–HRP conjugated (catalog #705-035–147; Jackson Immuno Research), goat α-mouse HRP (catalog #115-035–146; Jackson Immuno Research), and goat α-rabbit IgG HRP (catalog #111-035–144; Jackson Immuno Research) secondary antibodies (1:5,000–1:10,000) for 1 h at room temperature in fresh milk. Blots were washed three times in TBST. Protein signals were detected using standard ECL (Cytiva), except for GFP and Vac17 signals from yeast lysates, which were detected using ECL prime. Blots were developed with the ChemiDoc instrument and quantified with the BioRad Image Lab Software.

Statistical analysis was performed using GraphPad Prism version 10.1.0. Comparisons between two groups were evaluated using an unpaired, two-tailed Student’s t test. For multiple group comparisons, an ordinary one-way ANOVA followed by Tukey’s multiple comparisons test was used. Two-way ANOVA was applied to assess differences across mutants and bud sizes. Data were assumed to follow a normal distribution, although this was not formally tested.

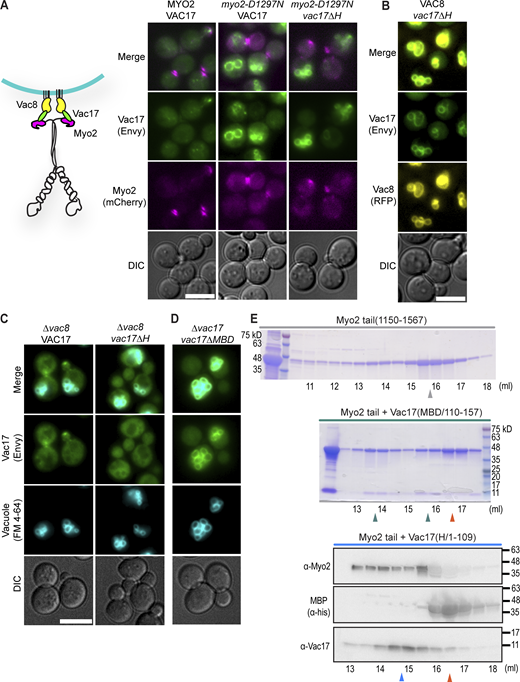

Fig. S1 shows that the vac17ΔH mutant is defective in its localization to sites of polarized growth but colocalizes with Vac8. Vac17(H) binds directly to the Myo2 tail in vitro. Fig. S2 shows that the expression of Vac17 in the vac17ΔH mutant is elevated and that the vacuole inheritance in small buds is delayed. Fig. S3 shows an overview of the cryo-EM specimen’s purification, data collection, refinement, and validation statistics. Fig. S4 shows that the Vac17 and Mmr1 bind overlapping sites on Myo2. Fig. S5 shows the cryo-EM processing workflow and validation statistics for the composite map of Vac17 bound to Myo2 at two sites. Table S1 shows the Vac17 suppressor mutant candidates identified from the PCR screen. The percentage of cells containing an inherited vacuole in the bud was measured. For each group, between 30 and 200 cells were analyzed, with data collected from at least two biological replicates. For more specific details about the screen, see Ishikawa et al. (2003). Table S2 lists the primers used for this study. Table S3 lists the strains and Table S4 lists the plasmids used in this study. Table S5 contains the information regarding cryo-EM data collection, refinement, and statistics.

All data are available from the corresponding authors upon request.

We thank Drs. Shyamal Mosalaganti, Amir Khan, Ming Li, and members of the Weisman and Cianfrocco labs for their insightful comments. We thank Ming Li for providing access to the CellASIC ONIX2 microfluidic system for the live-cell imaging experiments. The research reported in this publication was supported by the University of Michigan Cryo-EM Facility (U-M Cryo-EM). U-M Cryo-EM is grateful for support from the U-M Life Sciences Institute and the U-M Biosciences Initiative. We thank Dr. Yui Jin, Nippon Dental University, Tokyo, Japan, for the yeast strains LWY9506, LWY13976, and LWY8226; Dr. Alim Habib, currently at Ohio State University Medical School, Columbus, OH, USA, for the generation of a 3xEnvy plasmid as part of his undergraduate research; and Dr. Amir Khan, Trinity College, Dublin, Ireland for the codon-optimized Vac17 for expression in E. coli. We thank Dr. Charles G. Krasnow for suggesting the term handhold mechanism for describing our model.

This work was supported by the National Institutes of Health grant R01-GM062261 to L.S. Weisman and S10OD020011. H.J. Hahn was supported in part by the University of Michigan Rackham Predoctoral Fellowship.

Author contributions: H.J. Hahn: conceptualization, data curation, formal analysis, funding acquisition, investigation, methodology, project administration, resources, supervision, validation, visualization, and writing—original draft, review, and editing. N. Pashkova: investigation. M.A. Cianfrocco: conceptualization, funding acquisition, methodology, project administration, resources, software, supervision, validation, visualization, and writing—original draft, review, and editing. L.S. Weisman: conceptualization, formal analysis, funding acquisition, investigation, methodology, project administration, resources, supervision, visualization, and writing—original draft, review, and editing.
